gaio

Introduction
For a typical golang network program, you would first conn := lis.Accept() to get a connection and go func(net.Conn) to start a goroutine for handling the incoming data, then you would buf:=make([]byte, 4096) to allocate some buffer and finally waits on conn.Read(buf).
For a server holding >10K connections with frequent short messages(e.g. < 512B), cost for context switching is much more expensive than receiving message(a context switch needs at least 1000 CPU cycles or 600ns on 2.1GHz).
And by eliminating one goroutine per one connection scheme with Edge-Triggered IO Multiplexing, the 2KB®+2KB(W) per connection goroutine stack can be saved. By using internal swap buffer, buf:=make([]byte, 4096) can be saved(at the cost of performance).
## Features
1. Only a fixed number of goroutines will be created per [gaio.Watcher](https://godoc.org/github.com/xtaci/gaio#Watcher)(the core object of this library).
2. [Read(ctx, conn, buffer)](https://godoc.org/github.com/xtaci/gaio#Watcher.Read) can be called with `nil` buffer to make use of **internal swap buffer**.
3. **Non-intrusive** design, this library works with [net.Listener](https://golang.org/pkg/net/#Listener) and [net.Conn](https://golang.org/pkg/net/#Conn). (with [syscall.RawConn](https://golang.org/pkg/syscall/#RawConn) support)
4. **Amortized context switching cost** for tiny messages, able to handle frequent chat message exchanging.
5. Application can decide **when to delegate** [net.Conn](https://golang.org/pkg/net/#Conn) to `gaio`, for example, you can delegate [net.Conn](https://golang.org/pkg/net/#Conn) to `gaio` after some handshaking procedure.
6. Application can decide **when to submit** read or write requests, per-connection [back-pressure](https://en.wikipedia.org/wiki/Transmission_Control_Protocol#Flow_control) can be propagated to peer to slow down sending. This features is particular useful to transmit data from A to B, which B is slower than A.
7. Tiny, less than 1000 LOC, easy to debug.
8. Support for Linux, BSD.
## Conventions
1. Once you submit an async read/write requests with related [net.Conn](https://golang.org/pkg/net/#Conn) to [gaio.Watcher](https://godoc.org/github.com/xtaci/gaio#Watcher), this conn will be delegated to `gaio.Watcher` at first submit. Future use of this conn like [conn.Read](https://golang.org/pkg/net/#TCPConn.Read) or [conn.Write](https://golang.org/pkg/net/#TCPConn.Write) **will return error**.
2. If you decide not to use this connection anymore, you could call [gaio.Free(net.Conn)](https://godoc.org/github.com/xtaci/gaio#Free) to close socket and free related resources immediately.
3. If you forget to call [gaio.Free(net.Conn)](https://godoc.org/github.com/xtaci/gaio#Free), runtime garbage collector will close any related resources if nowhere in the system holds the [net.Conn](https://golang.org/pkg/net/#Conn).
4. For connection load-balance, you can create multiple [gaio.Watcher](https://godoc.org/github.com/xtaci/gaio#Watcher) with your own strategy to distribute [net.Conn](https://golang.org/pkg/net/#Conn).
5. For acceptor load-balance, you can use [go-reuseport](https://github.com/libp2p/go-reuseport) as the listener.
6. For read requests submitted with 'nil' buffer, the completed `[]byte` from `gaio.WaitIO()` is safe to use before next call to [gaio.WaitIO()](https://godoc.org/github.com/xtaci/gaio#Watcher.WaitIO) returned.
## TL;DR
```go
package main
import (
"log"
"net"
"github.com/xtaci/gaio"
)
// this goroutine will wait for all io events, and sents back everything it received
// in async way
func echoServer() {
for {
// loop wait for any IO events
results, err := gaio.WaitIO()
if err != nil {
log.Println(err)
return
}
for _, res := range results {
switch res.Operation {
case gaio.OpRead: // read completion event
if res.Error == nil {
// send back everything, we won't start to read again until write completes.
// submit an async write request
gaio.Write(nil, res.Conn, res.Buffer[:res.Size])
}
case gaio.OpWrite: // write completion event
if res.Error == nil {
// since write has completed, let's start read on this conn again
gaio.Read(nil, res.Conn, res.Buffer[:cap(res.Buffer)])
}
}
}
}
}
func main() {
go echoServer()
ln, err := net.Listen("tcp", "localhost:0")
if err != nil {
log.Fatal(err)
}
log.Println("echo server listening on", ln.Addr())
for {
conn, err := ln.Accept()
if err != nil {
log.Println(err)
return
}
log.Println("new client", conn.RemoteAddr())
// submit the first async read IO request
err = gaio.Read(nil, conn, make([]byte, 128))
if err != nil {
log.Println(err)
return
}
}
}
More examples
Push server
package main
package main
import (
"fmt"
"log"
"net"
"time"
"github.com/xtaci/gaio"
)
func main() {
// by simply replace net.Listen with reuseport.Listen, everything is the same as in push-server
// ln, err := reuseport.Listen("tcp", "localhost:0")
ln, err := net.Listen("tcp", "localhost:0")
if err != nil {
log.Fatal(err)
}
log.Println("pushing server listening on", ln.Addr(), ", use telnet to receive push")
// create a watcher
w, err := gaio.NewWatcher()
if err != nil {
log.Fatal(err)
}
// channel
ticker := time.NewTicker(time.Second)
chConn := make(chan net.Conn)
chIO := make(chan gaio.OpResult)
// watcher.WaitIO goroutine
go func() {
for {
results, err := w.WaitIO()
if err != nil {
log.Println(err)
return
}
for _, res := range results {
chIO <- res
}
}
}()
// main logic loop, like your program core loop.
go func() {
var conns []net.Conn
for {
select {
case res := <-chIO: // receive IO events from watcher
if res.Error != nil {
continue
}
conns = append(conns, res.Conn)
case t := <-ticker.C: // receive ticker events
push := []byte(fmt.Sprintf("%s\n", t))
// all conn will receive the same 'push' content
for _, conn := range conns {
w.Write(nil, conn, push)
}
conns = nil
case conn := <-chConn: // receive new connection events
conns = append(conns, conn)
}
}
}()
// this loop keeps on accepting connections and send to main loop
for {
conn, err := ln.Accept()
if err != nil {
log.Println(err)
return
}
chConn <- conn
}
}
Documentation
For complete documentation, see the associated Godoc.
Benchmarks
| Test Case | Throughput test with 64KB buffer |
|---|---|
| Description | A client keep on sending 64KB bytes to server, server keeps on reading and sending back whatever it received, the client keeps on receiving whatever the server sent back until all bytes received successfully |
| Command | go test -v -run=^$ -bench Echo |
| Macbook Pro | 1695.27 MB/s 518 B/op 4 allocs/op |
| Linux AMD64 | 1883.23 MB/s 518 B/op 4 allocs/op |
| Raspberry Pi4 | 354.59 MB/s 334 B/op 4 allocs/op |
| Test Case | 8K concurrent connection echo test |
|---|---|
| Description | Start 8192 clients, each client send 1KB data to server, server keeps on reading and sending back whatever it received, the client keeps on receiving whatever the server sent back until all bytes received successfully. |
| Command | go test -v -run=8k |
| Macbook Pro | 1.09s |
| Linux AMD64 | 0.94s |
| Raspberry Pi4 | 2.09s |

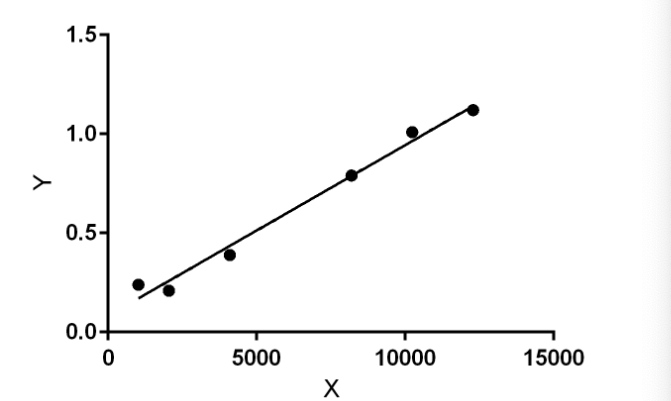

Regression

X -> number of concurrent connections, Y -> time of completion in seconds
Best-fit values
Slope 8.613e-005 ± 5.272e-006
Y-intercept 0.08278 ± 0.03998
X-intercept -961.1
1/Slope 11610
95% Confidence Intervals
Slope 7.150e-005 to 0.0001008
Y-intercept -0.02820 to 0.1938
X-intercept -2642 to 287.1
Goodness of Fit
R square 0.9852
Sy.x 0.05421
Is slope significantly non-zero?
F 266.9
DFn,DFd 1,4
P Value < 0.0001
Deviation from horizontal? Significant
Data
Number of XY pairs 6
Equation Y = 8.613e-005*X + 0.08278
License
gaio source code is available under the MIT License.
References
- https://zhuanlan.zhihu.com/p/102890337 – gaio小记
- https://golang.org/src/runtime/netpoll_epoll.go – epoll in golang
- https://www.freebsd.org/cgi/man.cgi?query=kqueue&sektion=2 – kqueue
- https://idea.popcount.org/2017-02-20-epoll-is-fundamentally-broken-12/ – epoll is fundamentally broken
- https://en.wikipedia.org/wiki/Transmission_Control_Protocol#Flow_control – TCP Flow Control
- http://www.idc-online.com/technical_references/pdfs/data_communications/Congestion_Control.pdf – Back-pressure
Status
Stable
