Monitor

Monitor is a Fiber middleware that exposes real-time process, Go runtime, system, and HTTP service metrics through a built-in dashboard and JSON snapshot.

The v3 monitor dashboard has been redesigned with an embedded, dependency-free UI and richer runtime and system metrics. Existing monitor.New(config...) usage remains source compatible.

Monitor does not persist metrics, run a background collection loop, or replace Prometheus, OpenTelemetry, or an APM.

Compatible with Fiber v3.

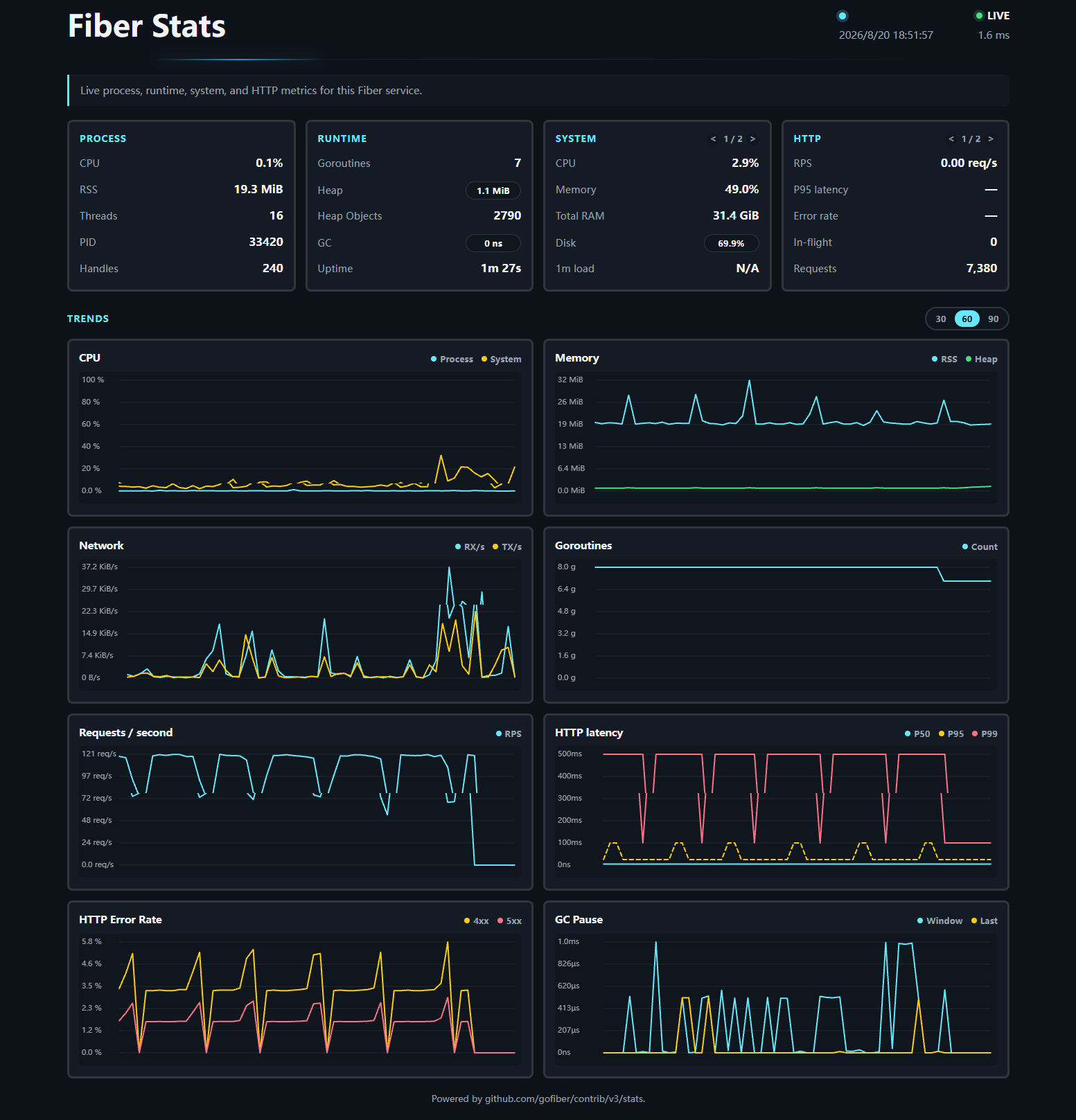

Preview

Install

go get github.com/gofiber/contrib/v3/monitor

Signature

monitor.New(config ...monitor.Config) fiber.Handler

Usage

The existing route-mounted form continues to serve HTML and JSON at whichever path you choose:

app.Get("/metrics", monitor.New())

Request the same endpoint with Accept: application/json to receive the raw snapshot. A route-only mount does not see application traffic, so its HTTP request metrics remain empty.

To collect HTTP metrics for the whole application, mount one monitor instance app-wide and use Next to pass non-monitor requests downstream:

package main

import (
    "github.com/gofiber/contrib/v3/monitor"
    "github.com/gofiber/fiber/v3"
    "github.com/gofiber/fiber/v3/log"
    "github.com/gofiber/fiber/v3/middleware/recover"
)

func main() {
    app := fiber.New()

    app.Use(monitor.New(monitor.Config{
        Next: func(c fiber.Ctx) bool {
            return c.Path() != "/metrics"
        },
    }))

    app.Get("/", func(c fiber.Ctx) error {
        return c.SendString("Hello, World!")
    })

    log.Fatal(app.Listen(":3000"))
}

Open http://localhost:3000/metrics. Requests for the monitor endpoint itself are not included in the HTTP metrics.

For production deployments, protect the endpoint with authentication, network restrictions, or a reverse proxy. Place endpoint-specific authentication before monitor:

app.Use("/metrics", authMiddleware)
app.Use(monitor.New(monitor.Config{
    Next: func(c fiber.Ctx) bool { return c.Path() != "/metrics" },
}))

When the application uses Fiber's recover middleware, place it after monitor so recovered panics are observed as 5xx responses:

app.Use(
    monitor.New(monitor.Config{
        Next: func(c fiber.Ctx) bool {
            return c.Path() != "/metrics"
        },
    }),
    recover.New(),
)

For instrumented requests that return an error, monitor invokes the application's configured Fiber ErrorHandler before recording the response. This makes status metrics match the response sent to the client, including custom error statuses. The error is therefore consumed at the monitor layer and does not propagate to middleware mounted before it.

Config

app.Use(monitor.New(monitor.Config{
    Next: func(c fiber.Ctx) bool { return c.Path() != "/metrics" },
    Title:       "My Service",
    Description: "Live runtime and HTTP statistics.",
    Footer:      "Internal operations dashboard.",
    FaviconURL:  "/assets/favicon.svg",
    Refresh:     3 * time.Second,
}))

Field	Type	Default	Description
Next	func(fiber.Ctx) bool	nil	Passes matching requests downstream and includes them in HTTP metrics. A false result serves monitor on the current path.
Title	string	Fiber Monitor	Document title and dashboard heading.
Description	string	See ConfigDefault	Text displayed below the heading.
Footer	string	See ConfigDefault	Text displayed at the bottom of the page.
FaviconURL	string	Built-in SVG	Root-relative path or absolute HTTP(S) URL.
Refresh	time.Duration	3s	Browser polling interval and server snapshot cache TTL; values below 1s are clamped.
APIOnly	bool	false	Returns JSON regardless of the request Accept header.
EnableGCPauseMetrics	bool	false	Enables exact last/window/total GC pause metrics through runtime.ReadMemStats, which briefly stops the Go runtime.
CustomHead	string	Deprecated	Retained for source compatibility and ignored by the embedded dashboard.
FontURL	string	Deprecated	Retained for source compatibility; no external font is loaded.
ChartJSURL	string	Deprecated	Retained for source compatibility; charts use the built-in Canvas implementation.

Default runtime metrics use runtime/metrics and avoid the explicit stop-the-world snapshot performed by runtime.ReadMemStats. Applications that need exact GC pause totals and the GC Pause trend can opt in:

app.Use(monitor.New(monitor.Config{
    Next:                 func(c fiber.Ctx) bool { return c.Path() != "/metrics" },
    EnableGCPauseMetrics: true,
}))

JSON

Request the monitor endpoint with an explicit JSON accept header:

curl -H "Accept: application/json" http://localhost:3000/metrics

The snapshot contains these groups:

{
  "collected_at": "2026-08-20T00:00:00Z",
  "collection": { "partial": false, "errors": [] },
  "process": {},
  "runtime": {},
  "system": {},
  "http": {}
}

Unsupported, failed, and not-yet-available window metrics are encoded as null, not as a synthetic zero. Collection failures expose stable identifiers such as system.disk; raw operating-system errors and paths are not returned.

Migration notes

Existing monitor.New(config...) usage remains source compatible.

The JSON snapshot has been redesigned from the legacy pid / os payload to the new process / runtime / system / http structure.

Route-mounted monitor instances still serve the dashboard and JSON snapshot, but application HTTP metrics require the app-wide Next setup shown above. Monitor endpoint requests are no longer counted as application traffic.

Metrics

Group	Metrics
Process	CPU, RSS, threads, file descriptors/handles, runtime since monitor initialization
Go runtime	Goroutines, heap allocation/system/in-use/idle/released memory, heap objects, Next GC, mallocs/frees, GOMAXPROCS, GC count, optional last/window/total GC pause, GC CPU fraction
System	CPU, used/available/total memory, application-filesystem usage/type/free space, 1/5/15-minute load averages, aggregate network rates
HTTP	Requests, in-flight requests, 1xx–5xx status classes, RPS, 4xx/5xx rates, P50/P95/P99 latency

CPU, network, request-rate, status-rate, and latency values need two collection windows. Their first snapshot is null.

Exact GC pause metrics are null unless EnableGCPauseMetrics is true; when enabled, the first window pause is also null while its baseline is established.

Snapshots are collected only when JSON is requested and are shared within the configured refresh TTL. The dashboard keeps at most 90 trend samples in browser memory and displays 60 by default. The 30/60/90 selector changes only the visible browser history and remembers the choice in local storage.

The eight trend panels cover CPU, memory, network, goroutines, requests per second, HTTP latency, HTTP error rates, and GC pauses. Heap, GC, application-filesystem, and HTTP status-code buttons open detailed views without triggering extra collection. Disk details never expose the filesystem path, mountpoint, or device name.

Performance

Run all benchmarks with:

go test -run='^$' -bench=. -benchmem

The cold-collection benchmarks include platform-specific gopsutil calls and are expected to vary between operating systems and machines. Results are intended for regression tracking, not as production throughput guarantees.

Security

This middleware exposes operational information and should be treated as a protected administrative endpoint.

Monitor does not implement authentication. Protect it with Fiber middleware, a reverse proxy, a private network, VPN, or firewall.

Monitor records aggregate counters only. It does not collect request or response bodies, headers, cookies, authorization values, query strings, route parameters, client IPs, user identifiers, environment variables, command lines, filesystem paths, or device names.

Notes

• Each New call owns independent counters, histogram, cache, and sampling baselines.
• Middleware instances are safe for concurrent use after construction.
• The business-request hot path uses time reads and atomic operations; system and runtime collection is not performed there.
• The embedded dashboard has no external JavaScript, CSS, font, or chart dependency.
• It initially follows the browser color scheme and provides a persisted Light/Dark toggle.
• Linux, macOS, and Windows are supported with graceful degradation when a metric is unavailable. Load averages are intentionally unsupported on Windows because gopsutil's Windows implementation starts a background sampler.

Documentation

Overview

Package monitor provides real-time operational metrics for Fiber services.

Index

• Variables
• func New(config ...Config) fiber.Handler
• type Config

Variables

var ConfigDefault = Config{
	Title:       defaultTitle,
	Description: defaultDescription,
	Footer:      defaultFooter,
	Refresh:     defaultRefresh,
	FontURL:     legacyDefaultFontURL,
	ChartJSURL:  legacyDefaultChartJSURL,
}

ConfigDefault is the default configuration.

var ErrInvalidFaviconURL = errors.New("monitor: favicon url must be a root-relative path or an absolute http(s) url")

ErrInvalidFaviconURL is returned when Config.FaviconURL is not supported.

Functions

func New

func New(config ...Config) fiber.Handler

New creates a Fiber handler that serves the dashboard and JSON snapshot on whichever route it is mounted. When Config.Next returns true, the request is passed downstream and included in the aggregate HTTP metrics instead.

Types

type Config

type Config struct {
	// Next passes matching requests to the rest of the Fiber stack. Requests
	// passed through this way are included in the HTTP metrics.
	Next func(c fiber.Ctx) bool

	// Title is shown in the page title and dashboard heading.
	Title string

	// Description is shown below the dashboard heading.
	Description string

	// Footer is shown at the bottom of the dashboard.
	Footer string

	// FaviconURL overrides the built-in favicon.
	// It must be a root-relative path or an absolute HTTP(S) URL.
	FaviconURL string

	// Refresh controls browser polling and server snapshot cache TTL.
	Refresh time.Duration

	// APIOnly makes the monitor endpoint return JSON regardless of Accept.
	APIOnly bool

	// EnableGCPauseMetrics enables exact GC pause metrics collected with
	// runtime.ReadMemStats. It is disabled by default because ReadMemStats
	// briefly stops the Go runtime while taking a consistent snapshot.
	EnableGCPauseMetrics bool

	// CustomHead is retained for source compatibility and has no effect.
	//
	// Deprecated: the embedded dashboard does not accept custom HTML.
	CustomHead string

	// FontURL is retained for source compatibility and has no effect.
	//
	// Deprecated: the embedded dashboard does not load external fonts.
	FontURL string

	// ChartJSURL is retained for source compatibility and has no effect.
	//
	// Deprecated: the embedded dashboard uses dependency-free Canvas charts.
	ChartJSURL string
}

Config defines the configuration for the monitor middleware.
