Stacked Diff Workflow
Using a stacked diff workflow allows you to break down a pull request into several smaller PRs. It also allows you to work on separate streams of work without the overhead of changing branches. Once you experience the efficiency of stacked diffs you can't imagine going back to your old workflow.
This project is a Command Line Interface that manages git commits and branches to allow you to quickly use a stacked diff workflow. It uses the Github CLI to create pull requests and add reviewers once PR checks have passed.
Installation
Installation as Github CLI Plugin
Mac
Optional: As this is a CLI, do yourself a favor and install iTerm and zsh, as they make working from the command line more pleasant.
# Install Github CLI.
brew install gh
# Setup login for Github CLI
gh auth login
# Install plugin
gh extensions install joshallenit/gh-stacked-diff
# Add a shell alias to make it faster to use.
# For example if using zsh:
echo "alias sd='gh stacked-diff'" >> ~/.zshrc
source ~/.zshrc
Windows
- Install Git and Git Bash
- Install Github CLI. Winget is possible:
winget install --id GitHub.cli - Authenticate gh and install plugin:
gh auth login # Install plugin gh extensions install joshallenit/gh-stacked-diff # Add a shell alias to make it faster to use. # For example if using Git Bash: echo "alias sd='gh stacked-diff'" >> ~/.bashrc source ~/.bashrc
Usage as a golang Library
The code can also be used as a go library within your own go application. See the Developer Guide for more info.
go get github.com/joshallenit/gh-stacked-diff/v2@v2.0.14
Command Line Interface
usage: sd [top-level-flags] <command> [<args>]`
Possible commands are:
add-reviewers Add reviewers to Pull Request on Github once its checks have passed
branch-name Outputs branch name of commit
checkout Checks out branch associated with commit indicator
code-owners Outputs code owners for all of the changes in branch
log Displays git log of your changes
new Create a new pull request from a commit on main
prs Lists all Pull Requests you have open.
rebase-main Bring your main branch up to date with remote
replace-commit Replaces a commit on main branch with its associated branch
replace-conflicts For failed rebase: replace changes with its associated branch
update Add commits from main to an existing PR
wait-for-merge Waits for a pull request to be merged
To learn more about a command use: sd <command> --help
flags:
-log-level string
Possible log levels:
debug
info
warn
error
Default is info, except on commands that are for output purposes,
(namely branch-name and log), which have a default of error.
Basic Commands

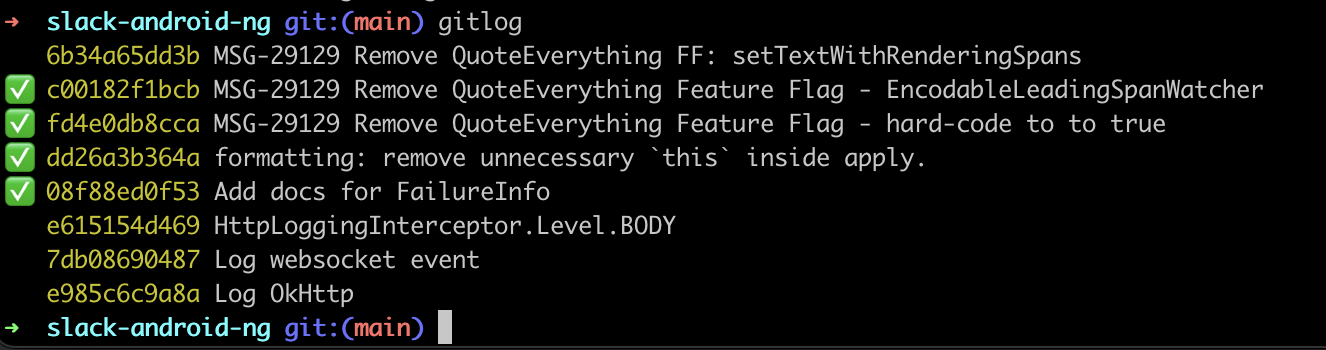

log
Displays summary of the git commits on current branch that are not in the remote branch.
Useful to view list indexes, or copy commit hashes, to use for the commitIndicator required by other commands.
A ✅ means that there is a PR associated with the commit (actually it means there is a branch, but having a branch means there is a PR when using this workflow). If there is more than one commit on the associated branch, those commits are also listed (indented under the their associated commit summary).
usage: sd log

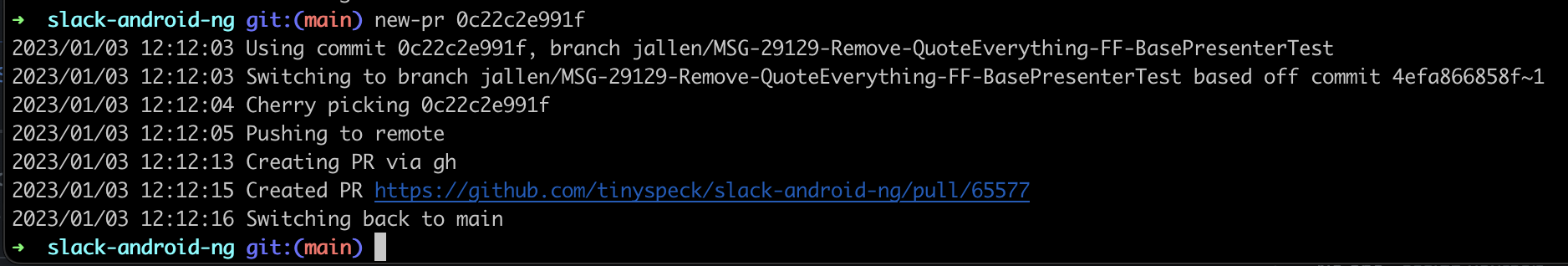

new
Create a new PR with a cherry-pick of the given commit indicator.
This command first creates an associated branch, (with a name based on the commit summary), and then uses Github CLI to create a PR.
Can also add reviewers once PR checks have passed, see "--reviewers" flag.
usage: sd new [flags] [commitIndicator]
If commitIndicator is missing then you will be prompted to select commit:
[enter] confirms selection
[up,k] moves cursor up
[down,j] moves cursor down
[q,esc] cancels
Ticket Number:
If you prefix a (Jira-like formatted) ticket number to the git commit
summary then the "Ticket" section of the PR description will be
populated with it.
For example:
"CONV-9999 Add new feature"
Templates:
The Pull Request Title, Body (aka Description), and Branch Name are
created from golang templates.
The default templates are:
branch-name.template: templates/config/branch-name.template
pr-description.template: templates/config/pr-description.template
pr-title.template: templates/config/pr-title.template
To change a template, copy the default from templates/config/ into
~/.gh-stacked-diff/ and modify contents.
The possible values for the templates are:
CommitBody Body of the commit message
CommitSummary Summary line of the commit message
CommitSummaryCleaned Summary line of the commit message without
spaces or special characters
CommitSummaryWithoutTicket Summary line of the commit message without
the prefix of the ticket number
FeatureFlag Value passed to feature-flag flag
TicketNumber Jira ticket as parsed from the commit summary
Username Name as parsed from git config email.
UsernameCleaned Username with dots (.) converted to dashes (-).
flags:
-base string
Base branch for Pull Request (default "main")
-draft
Whether to create the PR as draft (default true)
-feature-flag string
Value for FEATURE_FLAG in PR description
-indicator string
Indicator type to use to interpret commitIndicator:
commit a commit hash, can be abbreviated,
pr a github Pull Request number,
list the order of commit listed in the git log, as indicated
by "sd log"
guess the command will guess the indicator type:
Number between 0 and 99: list
Number between 100 and 999999: pr
Otherwise: commit
(default "guess")
-min-checks int
Minimum number of checks to wait for before verifying that checks
have passed before adding reviewers. It takes some time for checks
to be added to a PR by Github, and if you add-reviewers too soon it
will think that they have all passed. (default 4)
-reviewers string
Comma-separated list of Github usernames to add as reviewers once
checks have passed.
Keep your commit summary to a reasonable length. The commit summary is used as the branch name. To add more detail use the commit description. The created branch name is truncated to 120 chars as Github has problems with very long branch names.
update
Add commits from local main branch to an existing PR.
Can also add reviewers once PR checks have passed, see "--reviewers" flag.
usage: sd update [flags] [PR commitIndicator [fixup commitIndicator (defaults to head commit) [fixup commitIndicator...]]]
If commitIndicators are missing then you will be prompted to select commits:
[enter] confirms selection
[space] adds to selection when selecting commits to add
[up,k] moves cursor up
[down,j] moves cursor down
[q,esc] cancels
flags:
-indicator string
Indicator type to use to interpret commitIndicator:
commit a commit hash, can be abbreviated,
pr a github Pull Request number,
list the order of commit listed in the git log, as indicated
by "sd log"
guess the command will guess the indicator type:
Number between 0 and 99: list
Number between 100 and 999999: pr
Otherwise: commit
(default "guess")
-min-checks int
Minimum number of checks to wait for before verifying that checks
have passed before adding reviewers. It takes some time for checks
to be added to a PR by Github, and if you add-reviewers too soon it
will think that they have all passed. (default 4)
-reviewers string
Comma-separated list of Github usernames to add as reviewers once
checks have passed.

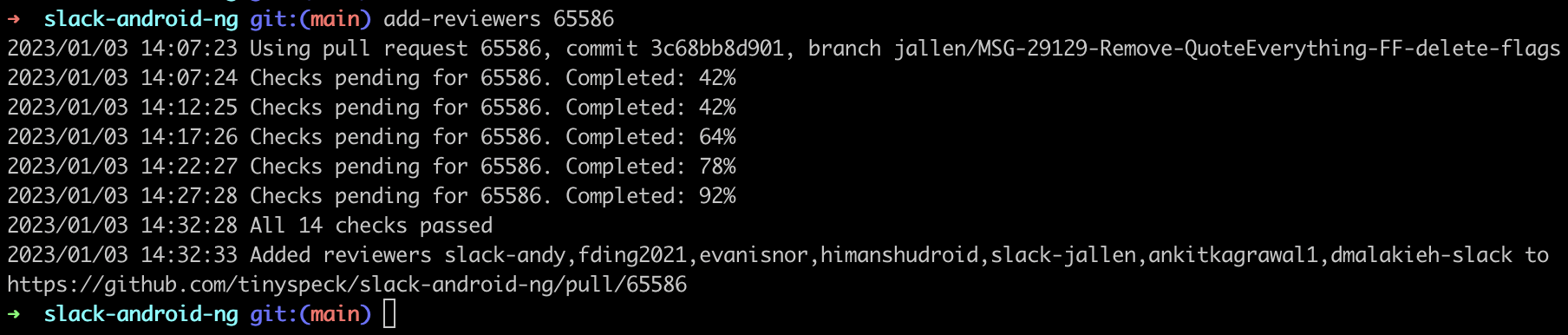

add-reviewers
Add reviewers to Pull Request on Github once its checks have passed.
If PR is marked as a Draft, it is first marked as "Ready for Review".
usage: sd add-reviewers [flags] [commitIndicator [commitIndicator]...]
flags:
-indicator string
Indicator type to use to interpret commitIndicator:
commit a commit hash, can be abbreviated,
pr a github Pull Request number,
list the order of commit listed in the git log, as indicated
by "sd log"
guess the command will guess the indicator type:
Number between 0 and 99: list
Number between 100 and 999999: pr
Otherwise: commit
(default "guess")
-min-checks int
Minimum number of checks to wait for before verifying that checks
have passed before adding reviewers. It takes some time for checks
to be added to a PR by Github, and if you add-reviewers too soon it
will think that they have all passed. (default 4)
-poll-frequency duration
Frequency which to poll checks. For valid formats see https://pkg.go.dev/time#ParseDuration (default 30s)
-reviewers string
Comma-separated list of Github usernames to add as reviewers once
checks have passed.
Falls back to PR_REVIEWERS environment variable.
-when-checks-pass
Poll until all checks pass before adding reviewers (default true)
You can specify more than one reviewer using a comma-delimited string.
To use the environment variable instead of the "--reviewers" flag:
export PR_REVIEWERS=first-user,second-user,third-user
Add this to your shell rc file (~/.zshrc or ~/.bashrc) and run source <rc-file>
Commands for Rebasing and Fixing Merge Conflicts
rebase-main
Rebase with origin/main, dropping any commits who's associated branches have been merged.
This avoids having to manually call "git reset --hard head" whenever you have merge conflicts with a commit that has already been merged but has slight variation with local main because, for example, a change was made with the Github Web UI.
usage: sd rebase-main
checkout
Checks out the branch associated with commit indicator.
For when you want to merge only the branch with with origin/main, rather than your entire local main branch, verify why CI is failing on that particular branch, or for any other reason.
After modifying the branch you can use "sd replace-commit" to sync local main.
usage: sd checkout [flags] <commitIndicator>
flags:
-indicator string
Indicator type to use to interpret commitIndicator:
commit a commit hash, can be abbreviated,
pr a github Pull Request number,
list the order of commit listed in the git log, as indicated by "sd log"
guess the command will guess the indicator type:
Number between 0 and 99: list
Number between 100 and 999999: pr
Otherwise: commit
(default "guess")
replace-commit
Replaces a commit on main branch with the squashed contents of its associated branch.
This is useful when you make changes within a branch, for example to fix a problem found on CI, and want to bring the changes over to your local main branch.
usage: sd replace-commit [flags] <commitIndicator>
flags:
-indicator string
Indicator type to use to interpret commitIndicator:
commit a commit hash, can be abbreviated,
pr a github Pull Request number,
list the order of commit listed in the git log, as indicated
by "sd log"
guess the command will guess the indicator type:
Number between 0 and 99: list
Number between 100 and 999999: pr
Otherwise: commit
(default "guess")
replace-conflicts
During a rebase that failed because of merge conflicts, replace the current uncommitted changes (merge conflicts), with the contents (diff between origin/main and HEAD) of its associated branch.
usage: sd replace-conflicts
flags:
-confirm
Whether to automatically confirm to do this rather than ask for y/n input
Commands for Custom Scripting
branch-name
Outputs the branch name for a given commit indicator. Useful for your own custom scripting.
usage: sd branch-name [flags] <commitIndicator>
flags:
-indicator string
Indicator type to use to interpret commitIndicator:
commit a commit hash, can be abbreviated,
pr a github Pull Request number,
list the order of commit listed in the git log, as indicated
by "sd log"
guess the command will guess the indicator type:
Number between 0 and 99: list
Number between 100 and 999999: pr
Otherwise: commit
(default "guess")
wait-for-merge
Waits for a pull request to be merged. Polls PR every 30 seconds.
Useful for your own custom scripting.
usage: sd main [flags] <commit hash or pull request number>
flags:
-indicator string
Indicator type to use to interpret commitIndicator:
commit a commit hash, can be abbreviated,
pr a github Pull Request number,
list the order of commit listed in the git log, as indicated
by "sd log"
guess the command will guess the indicator type:
Number between 0 and 99: list
Number between 100 and 999999: pr
Otherwise: commit
(default "guess")
Other Commands
code-owners
Outputs code owners for each file that has been modified in the current local branch when compared to the remote main branch
usage: sd code-owners
prs
Lists all of your open PRs. Useful for copying PR numbers.
usage: sd prs
Example Workflow
Creating and Updating PRs
Use sd new and sd update to create and update PR's while always staying on main branch.
To Update Main
Note: This process is automated by the sd rebase-main command. There is no need to follow these steps manually.
Once a PR has been merged, just rebase main normally. The local PR commit will be replaced by the one that Github created when squasing and merging.
git fetch && git rebase origin/main
If you run into conflicts with a commit that has already been merged you can just ignore it. This can happen, for example, if a change was made on github.com and it is not reflected in your local commit. Obviously, only do this if the PR has actually already been merged into main! The error message from rebase will let you know which commit has conflicts.
git reset --hard head && git rebase --continue
To Fix Merge Conflicts
If you just are rebasing with main and the commit with merge conflict has already been merged, then the process is simpler.
- Fix Merge Conflict
# switch to feature branch that has a merge conflict sd checkout <commitIndicator> git fetch && git merge origin/main # ... and address any merge conflicts # Update your PR git push origin/xxx - Merge PR via Github
- Update your Main Branch
If you want to update your main branch before you merge your PR, you can use replace-conflicts to keep your local main up to date.
# switch to feature branch that has a merge conflict
sd checkout <commitIndicator>
# rebase or merge
git fetch && git merge origin/main
# ... and address any merge conflicts
# Update your PR
git push origin/xxx
# Rebase your local main branch.
git switch main
git rebase origin/main
# hit same merge conflicts, use replace-head to copy the fixes you just made
replace-head <commitIndicator>
# continue with the rebase
git add . && git rebase --continue
# All done... now both the feature branch and your local main are rebased with main,
# and the merge conflicts only had to be fixed once
Building Source and Contributing
See the Developer Guide, which includes instructions on how to build the source, as well as an overview of the code.
Stacked Pull Requests?
Note: these scripts do not facilitate Stacked Pull Requests. Github does some things that add friction to using Stacked PR's, even with support from third party software. For example, after merging one of the PR's in the stack, the other PR's will require a re-review. Instead of Stacked PRs, it's recommended to organize your PR's, as much as reasonably possible, so that they can be all be rebased against main at the same time. When there are dependencies, wait for dependant PR to be merged before putting up the next one. You may find that often you are still working on the next commit while the other is being reviewed/merged.
Acknowledgments
-
Thanks to Dave Lee for publishing this article that inspired the first version of the scripts.
-
Thanks to the Github team for creating their CLI that is leveraged here.
Version Compatibility
| Stacked Diff version | gh CLI versions tested | git versions tested |
|---|---|---|
| 2.0.0 | 2.66.1, 2.64.0 | 2.47.1, 2.48.1 |
Documentation
¶
Overview ¶
Stacked Diff Workflow Command Line Interface
usage: sd [top-level-flags] <command> [<args>]
Possible commands are:
add-reviewers Add reviewers to Pull Request on Github once its checks have passed branch-name Outputs branch name of commit checkout Checks out branch associated with commit indicator code-owners Outputs code owners for all of the changes in branch log Displays git log of your changes new Create a new pull request from a commit on main prs Lists all Pull Requests you have open. rebase-main Bring your main branch up to date with remote replace-commit Replaces a commit on main branch with its associated branch replace-conflicts For failed rebase: replace changes with its associated branch update Add commits from main to an existing PR wait-for-merge Waits for a pull request to be merged
To learn more about a command use: sd <command> --help
flags:
-log-level string
Possible log levels:
debug
info
warn
error
Default is info, except on commands that are for output purposes,
(namely branch-name and log), which have a default of error.
Source Files
Directories
¶
| Path | Synopsis |
|---|---|
|
Commands of the the Stacked Diff Workflow Command Line Interface.
|
Commands of the the Stacked Diff Workflow Command Line Interface. |
|
Utilities for unit testing this project.
|
Utilities for unit testing this project. |
|
Utility functions (inspired by Kotlin) for slices.
|
Utility functions (inspired by Kotlin) for slices. |
