rk-boot/echo
Table of Contents generated with DocToc
Overview
Middlewares & bootstrapper designed for labstack/echo web framework, see official docs.
With rk-boot/echo, user can start labstack/echo server via boot.yaml file easily.
Dependency: rk-echo

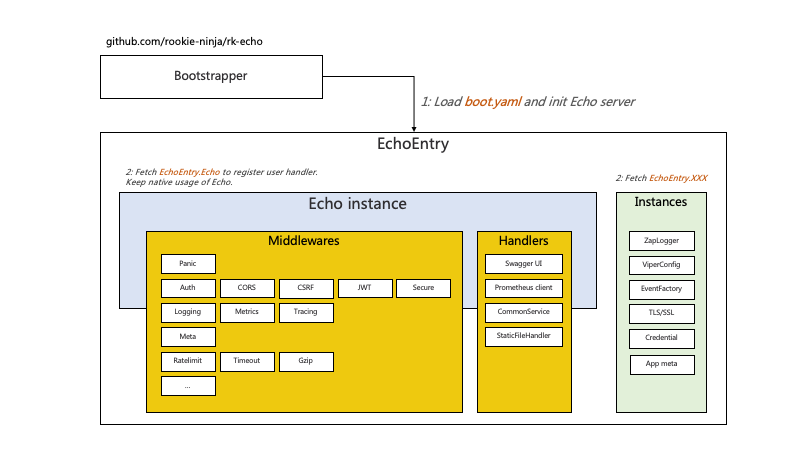

Architecture
Features
Supported bootstrap
| Bootstrap | Description |
|---|---|
| YAML based | Start labstack/echo microservice from YAML |
| Code based | Start labstack/echo microservice from code |
Supported instances
All instances could be configured via YAML or Code.
User can enable anyone of those as needed! No mandatory binding!
| Instance | Description |
|---|---|
| Echo | Compatible with original labstack/echo service functionalities |
| Config | Configure spf13/viper as config instance and reference it from YAML |
| Logger | Configure uber-go/zap logger configuration and reference it from YAML |
| EventLogger | Configure logging of RPC with rk-query and reference it from YAML |
| Credential | Fetch credentials from remote datastore like ETCD. |
| Cert | Fetch TLS/SSL certificates from remote datastore like ETCD and start microservice. |
| Prometheus | Start prometheus client at client side and push metrics to pushgateway as needed. |
| Swagger | Builtin swagger UI handler. |
| CommonService | List of common APIs. |
| TV | A Web UI shows microservice and environment information. |
| StaticFileHandler | A Web UI shows files could be downloaded from server, currently support source of local and pkger. |
Supported middlewares
All middlewares could be configured via YAML or Code.
User can enable anyone of those as needed! No mandatory binding!
| Middleware | Description |
|---|---|
| Metrics | Collect RPC metrics and export to prometheus client. |
| Log | Log every RPC requests as event with rk-query. |
| Trace | Collect RPC trace and export it to stdout, file or jaeger with open-telemetry/opentelemetry-go. |
| Panic | Recover from panic for RPC requests and log it. |
| Meta | Send micsroservice metadata as header to client. |
| Auth | Support [Basic Auth] and [API Key] authorization types. |
| RateLimit | Limiting RPC rate globally or per path. |
| Timeout | Timing out request by configuration. |
| Gzip | Compress and Decompress message body based on request header with gzip format . |
| CORS | Server side CORS validation. |
| JWT | Server side JWT validation. |
| Secure | Server side secure validation. |
| CSRF | Server side csrf validation. |
Installation
go get github.com/rookie-ninja/rk-boot/echo
Quick Start
In the bellow example, we will start microservice with bellow functionality and middlewares enabled via YAML.
- labstack/echo server
- Swagger UI
- CommonService
- TV
- Prometheus Metrics (middleware)
- Logging (middleware)
- Meta (middleware)
1.Create boot.yaml
Since we are going to generate swagger config files with swag，the generated config files will be in docs/ folder by default. [echo.sw.jsonPath: "docs"] needs to be specified in order to make server read swagger config file for user defined API.
---
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
tv:
enabled: true # Optional, default: false
prom:
enabled: true # Optional, default: false
sw:
enabled: true # Optional, default: false
jsonPath: "docs" # Optional, default: ""
commonService:
enabled: true # Optional, default: false
interceptors:
loggingZap:
enabled: true # Optional, default: false
metricsProm:
enabled: true # Optional, default: false
meta:
enabled: true # Optional, default: false
2.Create main.go
Since we are going to generate swagger config files with swag，some comments needs to be added as bellow.
// Copyright (c) 2021 rookie-ninja
//
// Use of this source code is governed by an Apache-style
// license that can be found in the LICENSE file.
package main
import (
"context"
"fmt"
"github.com/labstack/echo/v4"
"github.com/rookie-ninja/rk-boot"
"github.com/rookie-ninja/rk-boot/echo"
"net/http"
)
// @title RK Swagger for Echo
// @version 1.0
// @description This is a greeter service with rk-boot.
// Application entrance.
func main() {
// Create a new boot instance.
boot := rkboot.NewBoot()
// Register handler
echoEntry := rkbootecho.GetEchoEntry("greeter")
echoEntry.Echo.GET("/v1/greeter", Greeter)
// Bootstrap
boot.Bootstrap(context.Background())
// Wait for shutdown sig
boot.WaitForShutdownSig(context.Background())
}
// @Summary Greeter service
// @Id 1
// @version 1.0
// @produce application/json
// @Param name query string true "Input name"
// @Success 200 {object} GreeterResponse
// @Router /v1/greeter [get]
func Greeter(ctx echo.Context) error {
return ctx.JSON(http.StatusOK, &GreeterResponse{
Message: fmt.Sprintf("Hello %s!", ctx.QueryParam("name")),
})
}
// Response.
type GreeterResponse struct {
Message string
}
3.Generate swagger config file
Files would be generated as bellow.
$ swag init
$ tree
.
├── boot.yaml
├── docs
│ ├── docs.go
│ ├── swagger.json
│ └── swagger.yaml
├── go.mod
├── go.sum
└── main.go
4.Start server
$ go run main.go
5.Validation
5.1 Echo server
Try to test Echo Service with curl
# Curl to common service
$ curl localhost:8080/rk/v1/healthy
{"healthy":true}
5.2 Swagger & TV & Prometheus Client
- Swagger UI: http://localhost:8080/sw
- TV: http://localhost:8080/rk/v1/tv
- Prometheus Client: http://localhost:8080/metrics
5.3 Logging
By default, we enable zap logger and event logger with encoding type of [console]. Encoding type of [json] is also supported.
2022-01-08T20:54:46.507+0800 INFO boot/echo_entry.go:1106 Bootstrap echoEntry {"eventId": "4ca442ba-215f-47f5-b4db-42e991bdbbff", "entryName": "greeter"}
------------------------------------------------------------------------
endTime=2022-01-08T20:54:46.509452+08:00
startTime=2022-01-08T20:54:46.507795+08:00
elapsedNano=1656522
timezone=CST
ids={"eventId":"4ca442ba-215f-47f5-b4db-42e991bdbbff"}
app={"appName":"rk","appVersion":"","entryName":"greeter","entryType":"EchoEntry"}
env={"arch":"amd64","az":"*","domain":"*","hostname":"lark.local","localIP":"10.8.0.2","os":"darwin","realm":"*","region":"*"}
payloads={"commonServiceEnabled":true,"commonServicePathPrefix":"/rk/v1/","echoPort":8080,"promEnabled":true,"promPath":"/metrics","promPort":8080,"swEnabled":true,"swPath":"/sw/","tvEnabled":true,"tvPath":"/rk/v1/tv/"}
error={}
counters={}
pairs={}
timing={}
remoteAddr=localhost
operation=Bootstrap
resCode=OK
eventStatus=Ended
EOE
5.4 Meta
By default, we will send back some metadata to client including gateway with headers.
$ curl -vs localhost:8080/rk/v1/healthy
...
< HTTP/1.1 200 OK
< Content-Type: application/json; charset=UTF-8
< X-Request-Id: 3b406966-74e6-41c7-acd4-05d98faad71d
< X-Rk-App-Name: rk
< X-Rk-App-Unix-Time: 2022-01-08T20:58:55.289296+08:00
< X-Rk-App-Version:
< X-Rk-Received-Time: 2022-01-08T20:58:55.289296+08:00
< Date: Sat, 08 Jan 2022 12:58:55 GMT
...
5.5 Send request
We registered /v1/greeter API in labstack/echo server and let's validate it!
$ curl "localhost:8080/v1/greeter?name=rk-dev"
{"Message":"Hello rk-dev!"}
5.6 RPC logs
Bellow logs would be printed in stdout.
------------------------------------------------------------------------
endTime=2022-01-08T21:08:06.296625+08:00
startTime=2022-01-08T21:08:06.296559+08:00
elapsedNano=65861
timezone=CST
ids={"eventId":"51aed33a-82f5-4832-94bf-a85c10ad671d","requestId":"51aed33a-82f5-4832-94bf-a85c10ad671d"}
app={"appName":"rk","appVersion":"","entryName":"greeter","entryType":"EchoEntry"}
env={"arch":"amd64","az":"*","domain":"*","hostname":"lark.local","localIP":"10.8.0.2","os":"darwin","realm":"*","region":"*"}
payloads={"apiMethod":"GET","apiPath":"/v1/greeter","apiProtocol":"HTTP/1.1","apiQuery":"name=rk-dev","userAgent":"curl/7.64.1"}
error={}
counters={}
pairs={}
timing={}
remoteAddr=localhost:55384
operation=/v1/greeter
resCode=200
eventStatus=Ended
EOE
5.7 RPC prometheus metrics
Access http://localhost:8080/metrics
YAML Options
User can start multiple labstack/echo instances at the same time. Please make sure use different port and name.
Echo
| name | description | type | default value |
|---|---|---|---|
| echo.name | The name of echo server | string | N/A |
| echo.port | The port of echo server | integer | nil, server won't start |
| echo.enabled | Enable echo entry or not | bool | false |
| echo.description | Description of echo entry. | string | "" |
| echo.cert.ref | Reference of cert entry declared in cert entry | string | "" |
| echo.logger.zapLogger.ref | Reference of zapLoggerEntry declared in zapLoggerEntry | string | "" |
| echo.logger.eventLogger.ref | Reference of eventLoggerEntry declared in eventLoggerEntry | string | "" |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
description: "greeter server" # Optional, default: ""
cert:
ref: "local-cert" # Optional, default: "", reference of cert entry declared above
logger:
zapLogger:
ref: zap-logger # Optional, default: logger of STDOUT, reference of logger entry declared above
eventLogger:
ref: event-logger # Optional, default: logger of STDOUT, reference of logger entry declared above
CommonService
| Path | Description |
|---|---|
| /rk/v1/apis | List APIs in current EchoEntry. |
| /rk/v1/certs | List CertEntry. |
| /rk/v1/configs | List ConfigEntry. |
| /rk/v1/deps | List dependencies related application, entire contents of go.mod file would be returned. |
| /rk/v1/entries | List all Entries. |
| /rk/v1/gc | Trigger GC |
| /rk/v1/healthy | Get application healthy status. |
| /rk/v1/info | Get application and process info. |
| /rk/v1/license | Get license related application, entire contents of LICENSE file would be returned. |
| /rk/v1/logs | List logger related entries. |
| /rk/v1/git | Get git information. |
| /rk/v1/readme | Get contents of README file. |
| /rk/v1/req | List prometheus metrics of requests. |
| /rk/v1/sys | Get OS stat. |
| /rk/v1/tv | Get HTML page of /tv. |
| name | description | type | default value |
|---|---|---|---|
| echo.commonService.enabled | Enable embedded common service | boolean | false |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
commonService:
enabled: true # Optional, default: false
Swagger
| name | description | type | default value |
|---|---|---|---|
| echo.sw.enabled | Enable swagger service over echo server | boolean | false |
| echo.sw.path | The path access swagger service from web | string | /sw |
| echo.sw.jsonPath | Where the swagger.json files are stored locally | string | "" |
| echo.sw.headers | Headers would be sent to caller as scheme of [key:value] | []string | [] |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
sw:
enabled: true # Optional, default: false
path: "sw" # Optional, default: "sw"
jsonPath: "" # Optional, default: ""
headers: ["sw:rk"] # Optional, default: []
Prometheus Client
| name | description | type | default value |
|---|---|---|---|
| echo.prom.enabled | Enable prometheus | boolean | false |
| echo.prom.path | Path of prometheus | string | /metrics |
| echo.prom.pusher.enabled | Enable prometheus pusher | bool | false |
| echo.prom.pusher.jobName | Job name would be attached as label while pushing to remote pushgateway | string | "" |
| echo.prom.pusher.remoteAddress | PushGateWay address, could be form of http://x.x.x.x or x.x.x.x | string | "" |
| echo.prom.pusher.intervalMs | Push interval in milliseconds | string | 1000 |
| echo.prom.pusher.basicAuth | Basic auth used to interact with remote pushgateway, form of [user:pass] | string | "" |
| echo.prom.pusher.cert.ref | Reference of rkentry.CertEntry | string | "" |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
prom:
enabled: true # Optional, default: false
path: "" # Optional, default: "metrics"
pusher: # pushgateway configuration
enabled: false # Optional, default: false
jobName: "greeter-pusher" # Required
remoteAddress: "localhost:9091" # Required
basicAuth: "user:pass" # Optional, default: ""
intervalMs: 10000 # Optional, default: 1000
cert: # Optional
ref: "local-test" # Optional, default: "", reference of cert entry declared above
TV
| name | description | type | default value |
|---|---|---|---|
| echo.tv.enabled | Enable RK TV | boolean | false |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
tv:
enabled: true # Optional, default: false
Static file handler
| name | description | type | default value |
|---|---|---|---|
| echo.static.enabled | Optional, Enable static file handler | boolean | false |
| echo.static.path | Optional, path of static file handler | string | /rk/v1/static |
| echo.static.sourceType | Required, local and pkger supported | string | "" |
| echo.static.sourcePath | Required, full path of source directory | string | "" |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
static:
enabled: true # Optional, default: false
path: "/rk/v1/static" # Optional, default: /rk/v1/static
sourceType: local # Required, options: pkger, local
sourcePath: "." # Required, full path of source directory
- About pkger User can use pkger command line tool to embed static files into .go files.
Please use sourcePath like: github.com/rookie-ninja/rk-echo:/boot/assets
Middlewares
Log
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.loggingZap.enabled | Enable log interceptor | boolean | false |
| echo.interceptors.loggingZap.zapLoggerEncoding | json or console | string | console |
| echo.interceptors.loggingZap.zapLoggerOutputPaths | Output paths | []string | stdout |
| echo.interceptors.loggingZap.eventLoggerEncoding | json or console | string | console |
| echo.interceptors.loggingZap.eventLoggerOutputPaths | Output paths | []string | false |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
loggingZap:
enabled: true # Optional, default: false
zapLoggerEncoding: "json" # Optional, default: "console"
zapLoggerOutputPaths: ["logs/app.log"] # Optional, default: ["stdout"]
eventLoggerEncoding: "json" # Optional, default: "console"
eventLoggerOutputPaths: ["logs/event.log"] # Optional, default: ["stdout"]
We will log two types of log for every RPC call.
- zapLogger
Contains user printed logging with requestId or traceId.
- eventLogger
Contains per RPC metadata, response information, environment information and etc.
| Field | Description |
|---|---|
| endTime | As name described |
| startTime | As name described |
| elapsedNano | Elapsed time for RPC in nanoseconds |
| timezone | As name described |
| ids | Contains three different ids(eventId, requestId and traceId). If meta interceptor was enabled or event.SetRequestId() was called by user, then requestId would be attached. eventId would be the same as requestId if meta interceptor was enabled. If trace interceptor was enabled, then traceId would be attached. |
| app | Contains appName, appVersion, entryName, entryType. |
| env | Contains arch, az, domain, hostname, localIP, os, realm, region. realm, region, az, domain were retrieved from environment variable named as REALM, REGION, AZ and DOMAIN. "*" means empty environment variable. |
| payloads | Contains RPC related metadata |
| error | Contains errors if occur |
| counters | Set by calling event.SetCounter() by user. |
| pairs | Set by calling event.AddPair() by user. |
| timing | Set by calling event.StartTimer() and event.EndTimer() by user. |
| remoteAddr | As name described |
| operation | RPC method name |
| resCode | Response code of RPC |
| eventStatus | Ended or InProgress |
- example
------------------------------------------------------------------------
endTime=2021-11-01T23:31:01.706614+08:00
startTime=2021-11-01T23:31:01.706335+08:00
elapsedNano=278966
timezone=CST
ids={"eventId":"61cae46e-ea98-47b5-8a39-1090d015e09a","requestId":"61cae46e-ea98-47b5-8a39-1090d015e09a"}
app={"appName":"rk-echo","appVersion":"master-e4538d7","entryName":"greeter","entryType":"EchoEntry"}
env={"arch":"amd64","az":"*","domain":"*","hostname":"lark.local","localIP":"192.168.1.104","os":"darwin","realm":"*","region":"*"}
payloads={"apiMethod":"GET","apiPath":"/rk/v1/healthy","apiProtocol":"HTTP/1.1","apiQuery":"","userAgent":"curl/7.64.1"}
error={}
counters={}
pairs={}
timing={}
remoteAddr=localhost:54376
operation=/rk/v1/healthy
resCode=200
eventStatus=Ended
EOE
Metrics (prometheus)
[echo.prom.enabled: true] is necessary since middleware needs to prometheus client instance in server.
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.metricsProm.enabled | Enable metrics interceptor | boolean | false |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
prom:
enabled: true # Optional, default: false
interceptors:
metricsProm:
enabled: true # Optional, default: false
Auth
Enable the server side auth. codes.Unauthenticated would be returned to client if not authorized with user defined credential.
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.auth.enabled | Enable auth interceptor | boolean | false |
| echo.interceptors.auth.basic | Basic auth credentials as scheme of user:pass | []string | [] |
| echo.interceptors.auth.apiKey | API key auth | []string | [] |
| echo.interceptors.auth.ignorePrefix | The paths of prefix that will be ignored by interceptor | []string | [] |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
auth:
enabled: true # Optional, default: false
basic:
- "user:pass" # Optional, default: []
ignorePrefix:
- "/rk/v1" # Optional, default: []
apiKey:
- "keys" # Optional, default: []
Meta
Send application metadata as header to client.
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.meta.enabled | Enable meta interceptor | boolean | false |
| echo.interceptors.meta.prefix | Header key was formed as X--XXX | string | RK |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
meta:
enabled: true # Optional, default: false
prefix: "rk" # Optional, default: "rk"
Tracing
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.tracingTelemetry.enabled | Enable tracing interceptor | boolean | false |
| echo.interceptors.tracingTelemetry.exporter.file.enabled | Enable file exporter | boolean | RK |
| echo.interceptors.tracingTelemetry.exporter.file.outputPath | Export tracing info to files | string | stdout |
| echo.interceptors.tracingTelemetry.exporter.jaeger.agent.enabled | Export tracing info to jaeger agent | boolean | false |
| echo.interceptors.tracingTelemetry.exporter.jaeger.agent.host | As name described | string | localhost |
| echo.interceptors.tracingTelemetry.exporter.jaeger.agent.port | As name described | int | 6831 |
| echo.interceptors.tracingTelemetry.exporter.jaeger.collector.enabled | Export tracing info to jaeger collector | boolean | false |
| echo.interceptors.tracingTelemetry.exporter.jaeger.collector.endpoint | As name described | string | http://localhost:16368/api/trace |
| echo.interceptors.tracingTelemetry.exporter.jaeger.collector.username | As name described | string | "" |
| echo.interceptors.tracingTelemetry.exporter.jaeger.collector.password | As name described | string | "" |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
tracingTelemetry:
enabled: true # Optional, default: false
exporter: # Optional, default will create a stdout exporter
file:
enabled: true # Optional, default: false
outputPath: "logs/trace.log" # Optional, default: stdout
jaeger:
agent:
enabled: false # Optional, default: false
host: "" # Optional, default: localhost
port: 0 # Optional, default: 6831
collector:
enabled: true # Optional, default: false
endpoint: "" # Optional, default: http://localhost:14268/api/traces
username: "" # Optional, default: ""
password: "" # Optional, default: ""
RateLimit
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.rateLimit.enabled | Enable rate limit interceptor | boolean | false |
| echo.interceptors.rateLimit.algorithm | Provide algorithm, tokenBucket and leakyBucket are available options | string | tokenBucket |
| echo.interceptors.rateLimit.reqPerSec | Request per second globally | int | 0 |
| echo.interceptors.rateLimit.paths.path | Full path | string | "" |
| echo.interceptors.rateLimit.paths.reqPerSec | Request per second by full path | int | 0 |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
rateLimit:
enabled: false # Optional, default: false
algorithm: "leakyBucket" # Optional, default: "tokenBucket", options: [tokenBucket, leakyBucket]
reqPerSec: 100 # Optional, default: 1000000
paths:
- path: "/rk/v1/healthy" # Optional, default: ""
reqPerSec: 0 # Optional, default: 1000000
Timeout
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.timeout.enabled | Enable timeout interceptor | boolean | false |
| echo.interceptors.timeout.timeoutMs | Global timeout in milliseconds. | int | 5000 |
| echo.interceptors.timeout.paths.path | Full path | string | "" |
| echo.interceptors.timeout.paths.timeoutMs | Timeout in milliseconds by full path | int | 5000 |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
timeout:
enabled: false # Optional, default: false
timeoutMs: 5000 # Optional, default: 5000
paths:
- path: "/rk/v1/healthy" # Optional, default: ""
timeoutMs: 1000 # Optional, default: 5000
Gzip
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.gzip.enabled | Enable gzip interceptor | boolean | false |
| echo.interceptors.gzip.level | Provide level of compression, options are noCompression, bestSpeed, bestCompression, defaultCompression, huffmanOnly. | string | defaultCompression |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
gzip:
enabled: true # Optional, default: false
level: defaultCompression # Optional, default: defaultCompression, options: [noCompression, bestSpeed, bestCompression, defaultCompression, huffmanOnly]
CORS
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.cors.enabled | Enable cors interceptor | boolean | false |
| echo.interceptors.cors.allowOrigins | Provide allowed origins with wildcard enabled. | []string | * |
| echo.interceptors.cors.allowMethods | Provide allowed methods returns as response header of OPTIONS request. | []string | All http methods |
| echo.interceptors.cors.allowHeaders | Provide allowed headers returns as response header of OPTIONS request. | []string | Headers from request |
| echo.interceptors.cors.allowCredentials | Returns as response header of OPTIONS request. | bool | false |
| echo.interceptors.cors.exposeHeaders | Provide exposed headers returns as response header of OPTIONS request. | []string | "" |
| echo.interceptors.cors.maxAge | Provide max age returns as response header of OPTIONS request. | int | 0 |
---
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
cors:
enabled: true # Optional, default: false
allowOrigins:
- "http://localhost:*" # Optional, default: *
JWT
In order to make swagger UI and RK tv work under JWT without JWT token, we need to ignore prefixes of paths as bellow.
jwt:
...
ignorePrefix:
- "/rk/v1/tv"
- "/sw"
- "/rk/v1/assets"
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.jwt.enabled | Enable JWT interceptor | boolean | false |
| echo.interceptors.jwt.signingKey | Required, Provide signing key. | string | "" |
| echo.interceptors.jwt.ignorePrefix | Provide ignoring path prefix. | []string | [] |
| echo.interceptors.jwt.signingKeys | Provide signing keys as scheme of :. | []string | [] |
| echo.interceptors.jwt.signingAlgo | Provide signing algorithm. | string | HS256 |
| echo.interceptors.jwt.tokenLookup | Provide token lookup scheme, please see bellow description. | string | "header:Authorization" |
| echo.interceptors.jwt.authScheme | Provide auth scheme. | string | Bearer |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
jwt:
enabled: true # Optional, default: false
signingKey: "my-secret" # Required
ignorePrefix: # Optional, default: []
- "/rk/v1/tv"
- "/sw"
- "/rk/v1/assets"
signingKeys: # Optional
- "key:value"
signingAlgo: "" # Optional, default: "HS256"
tokenLookup: "header:<name>" # Optional, default: "header:Authorization"
authScheme: "Bearer" # Optional, default: "Bearer"
The supported scheme of tokenLookup
// Optional. Default value "header:Authorization".
// Possible values:
// - "header:<name>"
// - "query:<name>"
// - "param:<name>"
// - "cookie:<name>"
// - "form:<name>"
// Multiply sources example:
// - "header: Authorization,cookie: myowncookie"
Secure
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.secure.enabled | Enable secure interceptor | boolean | false |
| echo.interceptors.secure.xssProtection | X-XSS-Protection header value. | string | "1; mode=block" |
| echo.interceptors.secure.contentTypeNosniff | X-Content-Type-Options header value. | string | nosniff |
| echo.interceptors.secure.xFrameOptions | X-Frame-Options header value. | string | SAMEORIGIN |
| echo.interceptors.secure.hstsMaxAge | Strict-Transport-Security header value. | int | 0 |
| echo.interceptors.secure.hstsExcludeSubdomains | Excluding subdomains of HSTS. | bool | false |
| echo.interceptors.secure.hstsPreloadEnabled | Enabling HSTS preload. | bool | false |
| echo.interceptors.secure.contentSecurityPolicy | Content-Security-Policy header value. | string | "" |
| echo.interceptors.secure.cspReportOnly | Content-Security-Policy-Report-Only header value. | bool | false |
| echo.interceptors.secure.referrerPolicy | Referrer-Policy header value. | string | "" |
| echo.interceptors.secure.ignorePrefix | Ignoring path prefix. | []string | [] |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
secure:
enabled: true # Optional, default: false
xssProtection: "" # Optional, default: "1; mode=block"
contentTypeNosniff: "" # Optional, default: nosniff
xFrameOptions: "" # Optional, default: SAMEORIGIN
hstsMaxAge: 0 # Optional, default: 0
hstsExcludeSubdomains: false # Optional, default: false
hstsPreloadEnabled: false # Optional, default: false
contentSecurityPolicy: "" # Optional, default: ""
cspReportOnly: false # Optional, default: false
referrerPolicy: "" # Optional, default: ""
ignorePrefix: [] # Optional, default: []
CSRF
| name | description | type | default value |
|---|---|---|---|
| echo.interceptors.csrf.enabled | Enable csrf interceptor | boolean | false |
| echo.interceptors.csrf.tokenLength | Provide the length of the generated token. | int | 32 |
| echo.interceptors.csrf.tokenLookup | Provide csrf token lookup rules, please see code comments for details. | string | "header:X-CSRF-Token" |
| echo.interceptors.csrf.cookieName | Provide name of the CSRF cookie. This cookie will store CSRF token. | string | _csrf |
| echo.interceptors.csrf.cookieDomain | Domain of the CSRF cookie. | string | "" |
| echo.interceptors.csrf.cookiePath | Path of the CSRF cookie. | string | "" |
| echo.interceptors.csrf.cookieMaxAge | Provide max age (in seconds) of the CSRF cookie. | int | 86400 |
| echo.interceptors.csrf.cookieHttpOnly | Indicates if CSRF cookie is HTTP only. | bool | false |
| echo.interceptors.csrf.cookieSameSite | Indicates SameSite mode of the CSRF cookie. Options: lax, strict, none, default | string | default |
| echo.interceptors.csrf.ignorePrefix | Ignoring path prefix. | []string | [] |
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
interceptors:
csrf:
enabled: true
tokenLength: 32 # Optional, default: 32
tokenLookup: "header:X-CSRF-Token" # Optional, default: "header:X-CSRF-Token"
cookieName: "_csrf" # Optional, default: _csrf
cookieDomain: "" # Optional, default: ""
cookiePath: "" # Optional, default: ""
cookieMaxAge: 86400 # Optional, default: 86400
cookieHttpOnly: false # Optional, default: false
cookieSameSite: "default" # Optional, default: "default", options: lax, strict, none, default
ignorePrefix: [] # Optional, default: []
Full YAML
---
#app:
# description: "this is description" # Optional, default: ""
# keywords: ["rk", "golang"] # Optional, default: []
# homeUrl: "http://example.com" # Optional, default: ""
# iconUrl: "http://example.com" # Optional, default: ""
# docsUrl: ["http://example.com"] # Optional, default: []
# maintainers: ["rk-dev"] # Optional, default: []
#zapLogger:
# - name: zap-logger # Required
# description: "Description of entry" # Optional
#eventLogger:
# - name: event-logger # Required
# description: "Description of entry" # Optional
#cred:
# - name: "local-cred" # Required
# provider: "localFs" # Required, etcd, consul, localFs, remoteFs are supported options
# description: "Description of entry" # Optional
# locale: "*::*::*::*" # Optional, default: *::*::*::*
# paths: # Optional
# - "example/boot/full/cred.yaml"
#cert:
# - name: "local-cert" # Required
# provider: "localFs" # Required, etcd, consul, localFs, remoteFs are supported options
# description: "Description of entry" # Optional
# locale: "*::*::*::*" # Optional, default: *::*::*::*
# serverCertPath: "example/boot/full/server.pem" # Optional, default: "", path of certificate on local FS
# serverKeyPath: "example/boot/full/server-key.pem" # Optional, default: "", path of certificate on local FS
# clientCertPath: "example/client.pem" # Optional, default: "", path of certificate on local FS
# clientKeyPath: "example/client.pem" # Optional, default: "", path of certificate on local FS
#config:
# - name: rk-main # Required
# path: "example/boot/full/config.yaml" # Required
# locale: "*::*::*::*" # Required, default: *::*::*::*
# description: "Description of entry" # Optional
echo:
- name: greeter # Required
port: 8080 # Required
enabled: true # Required
# description: "greeter server" # Optional, default: ""
# cert:
# ref: "local-cert" # Optional, default: "", reference of cert entry declared above
# sw:
# enabled: true # Optional, default: false
# path: "sw" # Optional, default: "sw"
# jsonPath: "" # Optional
# headers: ["sw:rk"] # Optional, default: []
# commonService:
# enabled: true # Optional, default: false
# static:
# enabled: true # Optional, default: false
# path: "/rk/v1/static" # Optional, default: /rk/v1/static
# sourceType: local # Required, options: pkger, local
# sourcePath: "." # Required, full path of source directory
# tv:
# enabled: true # Optional, default: false
# prom:
# enabled: true # Optional, default: false
# path: "" # Optional, default: "metrics"
# pusher:
# enabled: false # Optional, default: false
# jobName: "greeter-pusher" # Required
# remoteAddress: "localhost:9091" # Required
# basicAuth: "user:pass" # Optional, default: ""
# intervalMs: 10000 # Optional, default: 1000
# cert: # Optional
# ref: "local-test" # Optional, default: "", reference of cert entry declared above
# logger:
# zapLogger:
# ref: zap-logger # Optional, default: logger of STDOUT, reference of logger entry declared above
# eventLogger:
# ref: event-logger # Optional, default: logger of STDOUT, reference of logger entry declared above
# interceptors:
# loggingZap:
# enabled: true # Optional, default: false
# zapLoggerEncoding: "json" # Optional, default: "console"
# zapLoggerOutputPaths: ["logs/app.log"] # Optional, default: ["stdout"]
# eventLoggerEncoding: "json" # Optional, default: "console"
# eventLoggerOutputPaths: ["logs/event.log"] # Optional, default: ["stdout"]
# metricsProm:
# enabled: true # Optional, default: false
# auth:
# enabled: true # Optional, default: false
# basic:
# - "user:pass" # Optional, default: []
# ignorePrefix:
# - "/rk/v1" # Optional, default: []
# apiKey:
# - "keys" # Optional, default: []
# meta:
# enabled: true # Optional, default: false
# prefix: "rk" # Optional, default: "rk"
# tracingTelemetry:
# enabled: true # Optional, default: false
# exporter: # Optional, default will create a stdout exporter
# file:
# enabled: true # Optional, default: false
# outputPath: "logs/trace.log" # Optional, default: stdout
# jaeger:
# agent:
# enabled: false # Optional, default: false
# host: "" # Optional, default: localhost
# port: 0 # Optional, default: 6831
# collector:
# enabled: true # Optional, default: false
# endpoint: "" # Optional, default: http://localhost:14268/api/traces
# username: "" # Optional, default: ""
# password: "" # Optional, default: ""
# rateLimit:
# enabled: false # Optional, default: false
# algorithm: "leakyBucket" # Optional, default: "tokenBucket"
# reqPerSec: 100 # Optional, default: 1000000
# paths:
# - path: "/rk/v1/healthy" # Optional, default: ""
# reqPerSec: 0 # Optional, default: 1000000
# timeout:
# enabled: false # Optional, default: false
# timeoutMs: 5000 # Optional, default: 5000
# paths:
# - path: "/rk/v1/healthy" # Optional, default: ""
# timeoutMs: 1000 # Optional, default: 5000
# jwt:
# enabled: true # Optional, default: false
# signingKey: "my-secret" # Required
# ignorePrefix: # Optional, default: []
# - "/rk/v1/tv"
# - "/sw"
# - "/rk/v1/assets"
# signingKeys: # Optional
# - "key:value"
# signingAlgo: "" # Optional, default: "HS256"
# tokenLookup: "header:<name>" # Optional, default: "header:Authorization"
# authScheme: "Bearer" # Optional, default: "Bearer"
# secure:
# enabled: true # Optional, default: false
# xssProtection: "" # Optional, default: "1; mode=block"
# contentTypeNosniff: "" # Optional, default: nosniff
# xFrameOptions: "" # Optional, default: SAMEORIGIN
# hstsMaxAge: 0 # Optional, default: 0
# hstsExcludeSubdomains: false # Optional, default: false
# hstsPreloadEnabled: false # Optional, default: false
# contentSecurityPolicy: "" # Optional, default: ""
# cspReportOnly: false # Optional, default: false
# referrerPolicy: "" # Optional, default: ""
# ignorePrefix: [] # Optional, default: []
# csrf:
# enabled: true
# tokenLength: 32 # Optional, default: 32
# tokenLookup: "header:X-CSRF-Token" # Optional, default: "header:X-CSRF-Token"
# cookieName: "_csrf" # Optional, default: _csrf
# cookieDomain: "" # Optional, default: ""
# cookiePath: "" # Optional, default: ""
# cookieMaxAge: 86400 # Optional, default: 86400
# cookieHttpOnly: false # Optional, default: false
# cookieSameSite: "default" # Optional, default: "default", options: lax, strict, none, default
# ignorePrefix: [] # Optional, default: []
# gzip:
# enabled: true
# level: bestSpeed # Optional, options: [noCompression, bestSpeed， bestCompression, defaultCompression, huffmanOnly]
# cors:
# enabled: true # Optional, default: false
# allowOrigins:
# - "http://localhost:*" # Optional, default: *
# allowCredentials: false # Optional, default: false
# allowHeaders: [] # Optional, default: []
# allowMethods: [] # Optional, default: []
# exposeHeaders: [] # Optional, default: []
# maxAge: 0 # Optional, default: 0
Development Status: Stable
Released under the Apache 2.0 License.
Documentation
Source Files
Click to show internal directories.
Click to hide internal directories.
