# Go-Distributed-FS

Go-DFS is a distributed file system written in golang. The system has the capability to store, retrieve and delete files from local store and also from network. The synchronizations are done in the background with gossip protocol and is eventually consistent. So this is a AP system (from CAP theorem).

Project Details

Network layer

The system builds on top of TCP transport layer. The session, connections are managed by the system.

Gossip protocol

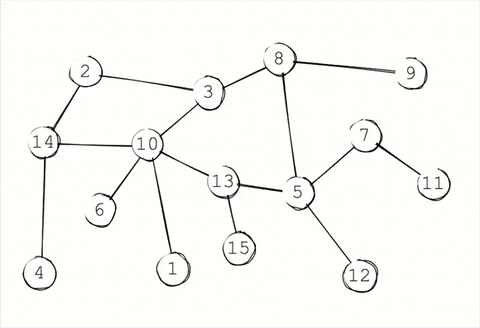

To decrease the load on a single node, the synchronization between network is done through gossip protocol or epidemic protocol. This everntually makes the system consistent. Accroding to CAP theorem, the system is not immediately consistent but available and parition tolerant.

Storage

The files are stored in the local file system with the help of a store encapsulation. The storage supports 5 main functionalities

• Check existence of a file
• Store a file
• Retrieve metadata of a file
• Retrieve a file
• Delete a file

Storing file

A file is stored with an associated key. Once the file is successfully saved, the client is notified of the upload status.
Synchronization between the peers in the network is then performed asynchronously using a gossip protocol. A random set of nodes is multicasted with the file data, and those nodes, in turn, propagate it to some of their peers, eventually leading to a consistent system.

See the sequence diagram for more clarity.

Retriving a file

Upon a retrieval request, if the file is present in the peer's storage, it responds with the file data. If the file is not present, a file request is broadcast to the network. If another node has the file, it sends it back, and the client is then provided with the file. If no node has the file, the client is notified of an error.

See the sequence diagram for more clarity.

Peer discovery

Peer discovery in system is also done by gossip. When a new node joins the cluster it needs to join through a known peer already in the cluster. That known peer sends the peer joining information to the rest of the cluster.

See the sequence diagram for more clarity.

How to run

Prequisites

Make sure you have golang installed in your device. Download and install golang from here

Installation

At first clone this repository and then download the dependencies for the project

git clone https://github.com/TamimEhsan/go-dfs.git
cd go-dfs
go install .

Running the nodes

The servers take 1 mandatory argument host:port and optional arguments addr:port of the peers. The first node in the system doesn't need any peer address cause there aren't any. The subsequent nodes need at least one remote address to join the network

go run . 127.0.0.1:4001 # run the first node
go run . 127.0.0.1:4002 127.0.0.1:4001 # run the second node

You can add as much number of nodes you want

Sequence Diagrams

Saving a file

sequenceDiagram
    participant Client
    participant Server
    participant Store1 as Server Storage
    participant TL1 as Server Transport Layer
    participant TL2 as Peer Transport Layer
    participant Peer as Peers
    participant Store2 as Peer Storage

    Client->>Server: Upload file
    activate Server
    Server->>Store1: Save file

    Server->>TL1: Send metadata (filename, size)
    TL1->>TL2: Send metadata by TCP
    activate TL2
    TL2->>Peer: Send metadata (filename, size)
    deactivate TL2
    activate Peer
    Peer->>TL2: Lock transport layer
    Server->>Peer: Stream file data
    deactivate Server
    Peer->>Store2: Save file
    Peer->>TL2: Unlock transport layer
    deactivate Peer

Get a file through network

sequenceDiagram
    participant Client
    participant Server
    participant Store1 as Server Storage
    participant TL1 as Server Transport Layer
    participant TL2 as Peer Transport Layer
    participant Peer as Peers
    participant Store2 as Peer Storage

    activate Client

    Client->>Server: Request file
    activate Server
    Server->>Store1: Check local storage

    alt File found
        Store1->>Server: Send file
        Server->>Client: Send file
    else File not found
        Store1->>Server: File not found
        Server->>TL1: Broadcast file request
        TL1->>TL2: File Request
        TL2->>Peer: Peer receives file request

        activate Peer

        Peer->>Store2: Get file
        activate Store2
        Store2->>Peer: Retrieve File Stream
        deactivate Store2
        Peer->>TL2: Send metadata (filename, size)
        TL2->>TL1: Send metadata (filename, size)
        TL1->>Server: Send metadata (filename, size)
        Server->>TL1: Lock transport layer
        Peer->>Server: Stream file data
        deactivate Peer
        Server->>TL1: Unlock transport layer
        Server->>Client: Serve file
    end
    deactivate Server
    deactivate Client

Peer discovery

sequenceDiagram
    participant NodeA as New Node
    participant NodeB as Known Peer NodeB
    participant NodeC as Peer of NodeB
    participant NodeD as Another Peer

    NodeA->>NodeB: Establish TCP connection
    NodeA->>NodeB: Send NodeA address
    NodeB->>NodeC: Gossip NodeA address
    NodeC->>NodeA: Connect to NodeA
    NodeC->>NodeD: Gossip NodeA address
    NodeD->>NodeA: Connect to NodeA

Acknowledgement

The project is built on top of the tutorial by Anthony and further modification and new features were added.
