dagu

A simple command to run workflows (DAGs) defined in YAML format

dagu is a single command that generates and executes a DAG (Directed acyclic graph) from a simple YAML definition. dagu also comes with a convenient web UI & REST API interface. It aims to be one of the easiest option to manage DAGs executed by cron.

Contents

• dagu
  • Contents
  • Motivation
  • Why not existing tools, like Airflow?
  • Quick start
    • Installation
    • Usage
  • Features
  • Use cases
  • User interface
  • Architecture
  • Configuration
    • Environment variables
    • Web UI configuration
    • Global configuration
  • DAG configuration
    • Simple configuration
    • All configuration
  • Examples
  • FAQ
    • How to contribute?
  • Todo
  • License

Motivation

Currently, my environment has many problems. Hundreds of complex cron jobs are registered on huge servers and it is impossible to keep track of the dependencies between them. If one job fails, I don't know which job to re-run. I also have to SSH into the server to see the logs and manually run the shell scripts one by one.

So I needed a tool that can explicitly visualize and manage the dependencies of the pipeline.

How nice it would be to be able to visually see the job dependencies, execution status, and logs of each job in a web browser, and to be able to rerun or stop a series of jobs with just a mouse click!

Why not existing tools, like Airflow?

I considered many potential tools such as Airflow, Rundeck, Luigi, DigDag, JobScheduler, etc.

But unfortunately, they were not suitable for my existing environment. Because they required a DBMS (Database Management System) installation, relatively high learning curves, and more operational overheads. We only have a small group of engineers in our office and use a less common DBMS.

Finally, I decided to build my own tool that would not require any DBMS server, any daemon process, or any additional operational burden and is easy to use.

Quick start

Installation

Download the binary from Releases page and place it on your system.

Usage

• dagu start [--params=<params>] <DAG file> - run a DAG
• dagu status <DAG file> - display the current status of the DAG
• dagu retry --req=<request-id> <DAG file> - retry the failed/canceled DAG
• dagu stop <DAG file> - cancel a DAG
• dagu dry [--params=<params>] <DAG file> - dry-run a DAG
• dagu server - start a web server for web UI

Features

• Simple command interface (See Usage)
• Simple configuration YAML format (See Simple example)
• Web UI to visualize, manage DAGs and watch logs
• Parameterization
• Conditions
• Automatic retry
• Cancellation
• Retry
• Prallelism limits
• Environment variables
• Repeat
• Basic Authentication
• E-mail notifications
• REST API interface
• onExit / onSuccess / onFailure / onCancel handlers
• Automatic history cleaning

Use cases

• ETL Pipeline
• Batches
• Machine Learning
• Data Processing
• Automation

User interface

• DAGs: Overview of all DAGs in your environment.



• Detail: Current status of the dag.



• Timeline: Timeline of each steps in the pipeline.

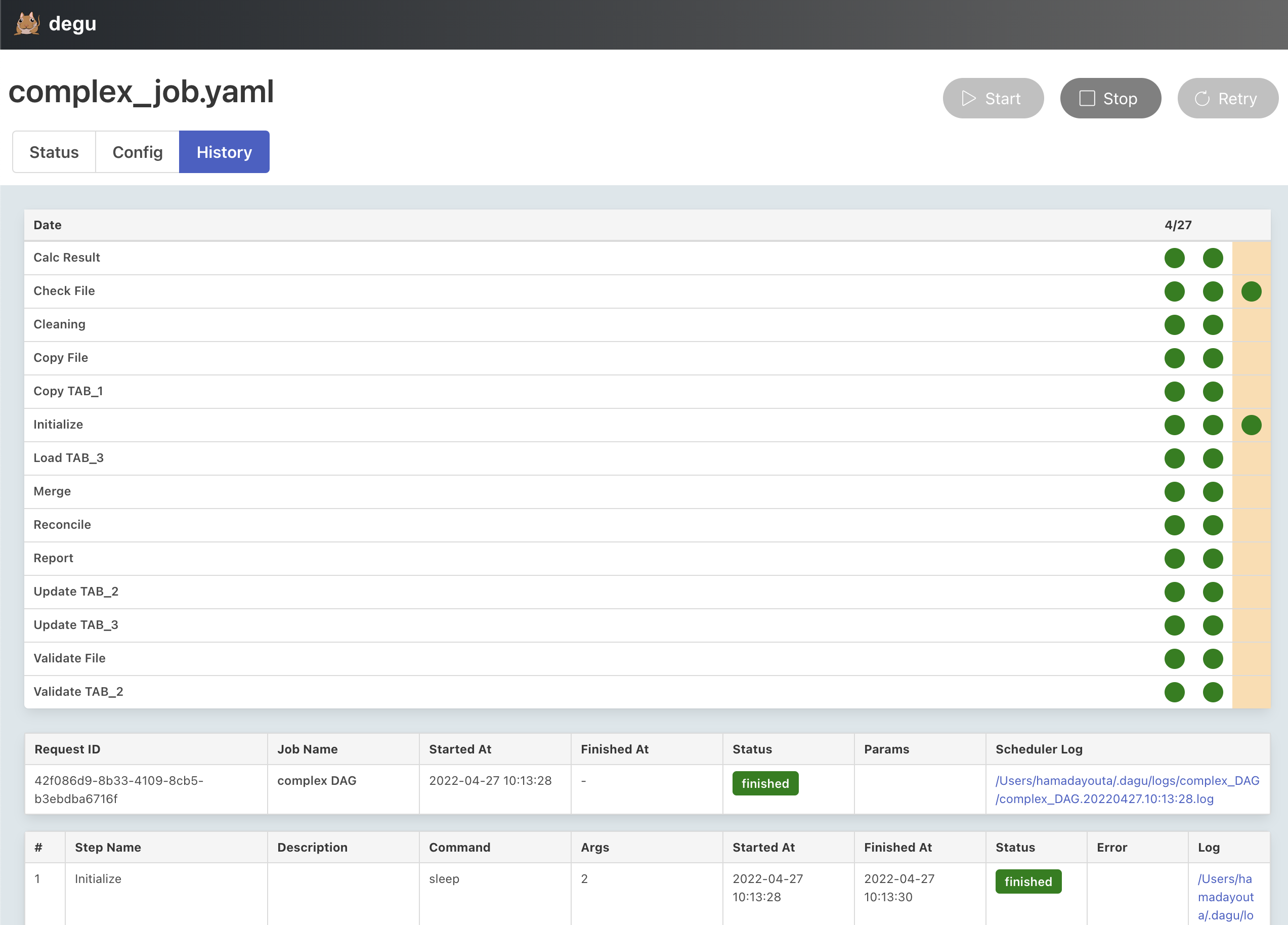

• History: History of the execution of the pipeline.



Architecture

• uses plain JSON files as history database, and unix sockets to communicate with running processes.

Configuration

Environment variables

• DAGU__DATA - path to directory for internal use by dagu (default : ~/.dagu/data)
• DAGU__LOGS - path to directory for logging (default : ~/.dagu/logs)

Web UI configuration

Please create ~/.dagu/admin.yaml.

host: <hostname for web UI address>             # default : 127.0.0.1
port: <port number for web UI address>          # default : 8080
jobs: <the location of job configuration files> # default : current working directory

# optional
command: <Absolute path of dagu binary if it's not in $PATH>
isBasicAuth: <true|false>
basicAuthUsername: <username for basic auth of web UI>
basicAuthPassword: <password for basic auth of web UI>

Global configuration

Please create ~/.dagu/config.yaml. All settings can be overridden by individual DAG configurations.

Creating a global configuration is a convenient way to organize common settings.

logDir: <path-to-write-log>   # log directory to write standard output from the job steps
histRetentionDays: 3 # job history retention days (not for log files)

# E-mail server config (optional)
smtp:
  host: <smtp server host>
  port: <stmp server port>
errorMail:
  from: <from address to send error mail>
  to: <to address to send error mail>
  prefix: <prefix of mail subject for error mail>
infoMail:
  from: <from address to send notification mail>
  to: <to address to send notification mail>
  prefix: <prefix of mail subject for notification mail>

DAG configuration

Simple configuration

name: simple configuration
steps:
  - name: step 1                     # step name (required, unique)
    command: python some_batch_1.py  # command and arguments
    dir: ${HOME}/dags/               # working directory (optional)
  - name: step 2
    command: python some_batch_2.py
    dir: ${HOME}/dags/
    depends:
      - step 1                       # dependency

All configuration

name: all configuration
description: run a DAG

# Define environment variables
env:
  LOG_DIR: ${HOME}/logs
  PATH: /usr/local/bin:${PATH}

logDir: ${LOG_DIR}   # log directory to write standard output
histRetentionDays: 3 # execution history retention days (not for log files)
delaySec: 1          # interval seconds between steps
maxActiveRuns: 1     # max parallel number of running step

# Define parameters
params: param1 param2 # they can be referenced by each steps as $1, $2 and so on.

# Define preconditions for whether or not the DAG is allowed to run
preconditions:
  - condition: "`printf 1`"
    expected: "1"

# Mail notification configs
mailOnError: true    # send a mail when a dag failed
mailOnFinish: true   # send a mail when a dag finished

# Handler on Success, Failure, Cancel, Exit
handlerOn:
  success:
    command: "echo succeed"
  failure:
    command: "echo failed"
  cancel:
    command: "echo canceled"
  exit:
    command: "echo finished"

# DAG steps
steps:
  - name: step 1
    description: step 1 description
    dir: ${HOME}/logs
    command: python some_batch_1.py $1
    mailOnError: false # do not send mail on error
    continueOn:
      failed: true     # continue to the next step regardless the error of this step
      skipped: true    # continue to the next step regardless the evaluation result of preconditions
    retryPolicy:
      limit: 2         # retry up to 2 times when the step failed
    # Define preconditions for whether or not the step is allowed to run
    # If the specified conditions are not met, this step and subsequent steps are skipped.
    preconditions:
      - condition: "`printf 1`"
        expected: "1"
  - name: step 2
    description: step 2 description
    dir: ${HOME}/logs
    command: python some_batch_2.py $1
    depends:
      - step 1

The global config file ~/.dagu/config.yaml is useful to gather common settings such as mail-server configs or log directory.

Examples

To check all examples, visit this page.

• Sample 1

name: example DAG
steps:
  - name: "1"
    command: echo hello world
  - name: "2"
    command: sleep 10
    depends:
      - "1"
  - name: "3"
    command: echo done!
    depends:
      - "2"

• Sample 2

name: example DAG
env:
  LOG_DIR: ${HOME}/logs
logDir: ${LOG_DIR}
params: foo bar
steps:
  - name: "check precondition"
    command: echo start
    preconditions:
      - condition: "`echo $1`"
        expected: foo
  - name: "print foo"
    command: echo $1
    depends:
      - "check precondition"
  - name: "print bar"
    command: echo $2
    depends:
      - "print foo"
  - name: "failure and continue"
    command: "false"
    continueOn:
      failure: true
    depends:
      - "print bar"
  - name: "print done"
    command: echo done!
    depends:
      - "failure and continue"
handlerOn:
  exit:
    command: echo finished!
  success:
    command: echo success!
  failure:
    command: echo failed!
  cancel:
    command: echo canceled!

• Complex example

name: complex DAG
steps:
  - name: "Initialize"
    command: "sleep 2"
  - name: "Copy TAB_1"
    description: "Extract data from TAB_1 to TAB_2"
    command: "sleep 2"
    depends:
      - "Initialize"
  - name: "Update TAB_2"
    description: "Update TAB_2"
    command: "sleep 2"
    depends:
      - Copy TAB_1
  - name: Validate TAB_2
    command: "sleep 2"
    depends:
      - "Update TAB_2"
  - name: "Load TAB_3"
    description: "Read data from files"
    command: "sleep 2"
    depends:
      - Initialize
  - name: "Update TAB_3"
    command: "sleep 2"
    depends:
      - "Load TAB_3"
  - name: Merge
    command: "sleep 2"
    depends:
      - Update TAB_3
      - Validate TAB_2
      - Validate File
  - name: "Check File"
    command: "sleep 2"
  - name: "Copy File"
    command: "sleep 2"
    depends:
      - Check File
  - name: "Validate File"
    command: "sleep 2"
    depends:
      - Copy File
  - name: Calc Result
    command: "sleep 2"
    depends:
      - Merge
  - name: "Report"
    command: "sleep 2"
    depends:
      - Calc Result
  - name: Reconcile
    command: "sleep 2"
    depends:
      - Calc Result
  - name: "Cleaning"
    command: "sleep 2"
    depends:
      - Reconcile

FAQ

How to contribute?

Feel free to contribute in any way you want. Share ideas, submit issues, create pull requests. You can start by improving this README.md or suggesting new features Thank you!

Todo

• Documentation for YAML definitions
• Prettier CLI interface
• JWT authentication
• History compaction
• History sub command
• Edit YAML on Web UI
• Pause & Resume pipeline
• Docker container
• Edit node status on Web UI

License

This project is licensed under the GNU GPLv3 - see the LICENSE.md file for details
